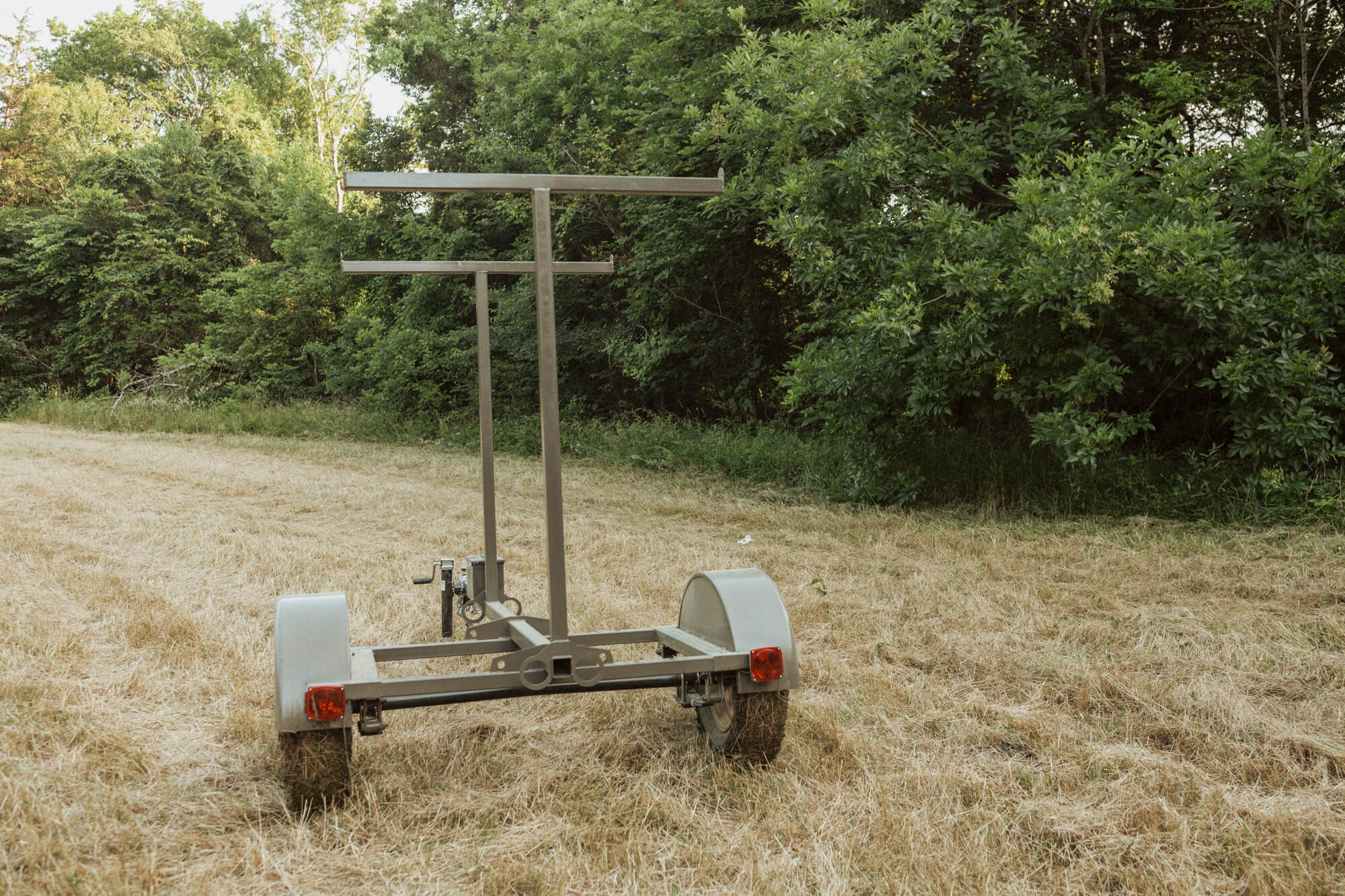

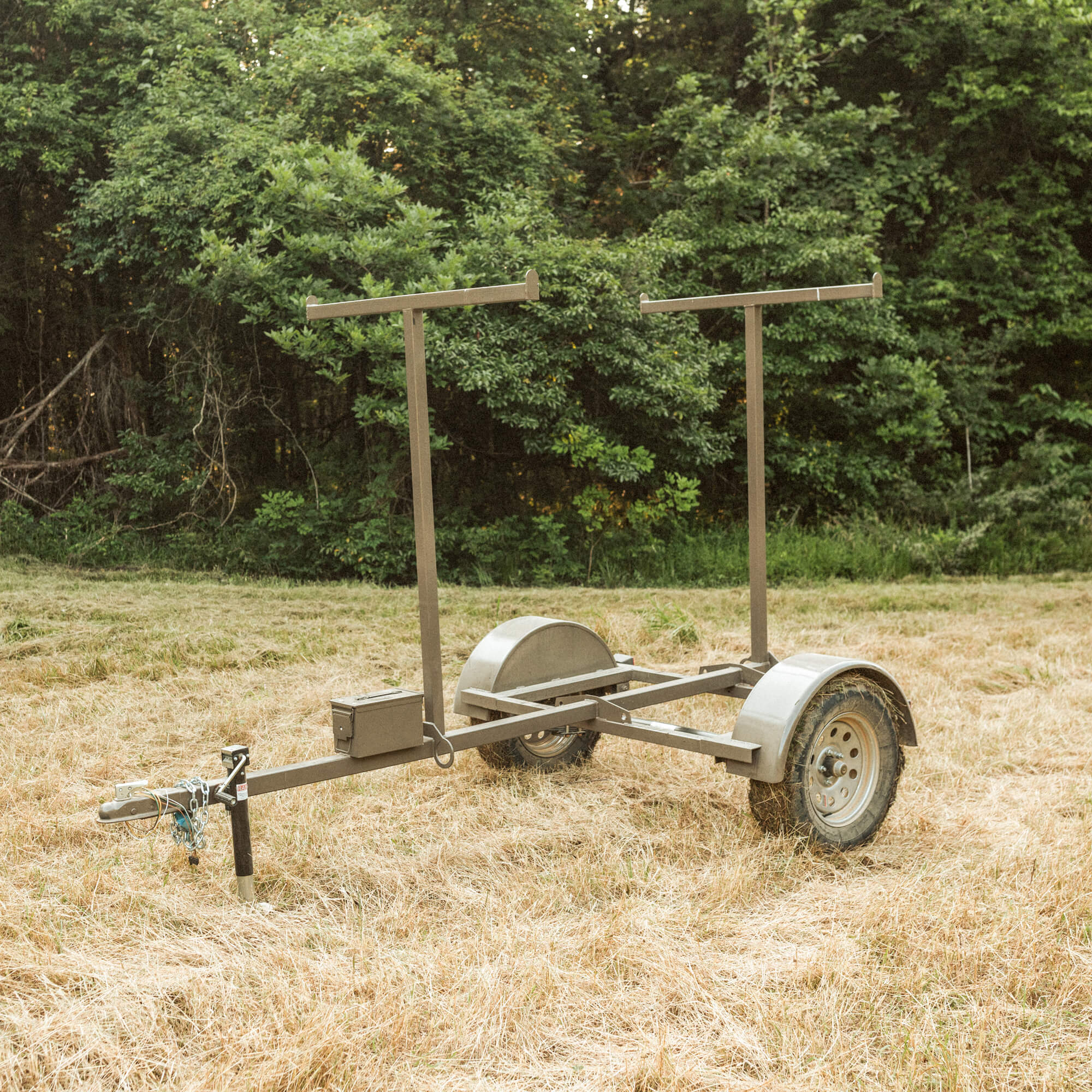

Panel Trap Trailer

Built for the job, this trailer hauls eight panels and two gates in a balanced A-frame stack you can load or unload in minutes. A 1,990 lb GVWR and a single 3,500 lb axle let you tow it behind a small ATV or UTV with ease.

Trailer Features

• Gates and panels ride upright in an A-frame for even weight and safe travel

• Two heavy-duty 15 ft straps included (1,460 lb working load, 4,400 lb break strength)

• Upright T-braces steady the load and double as strap anchor points

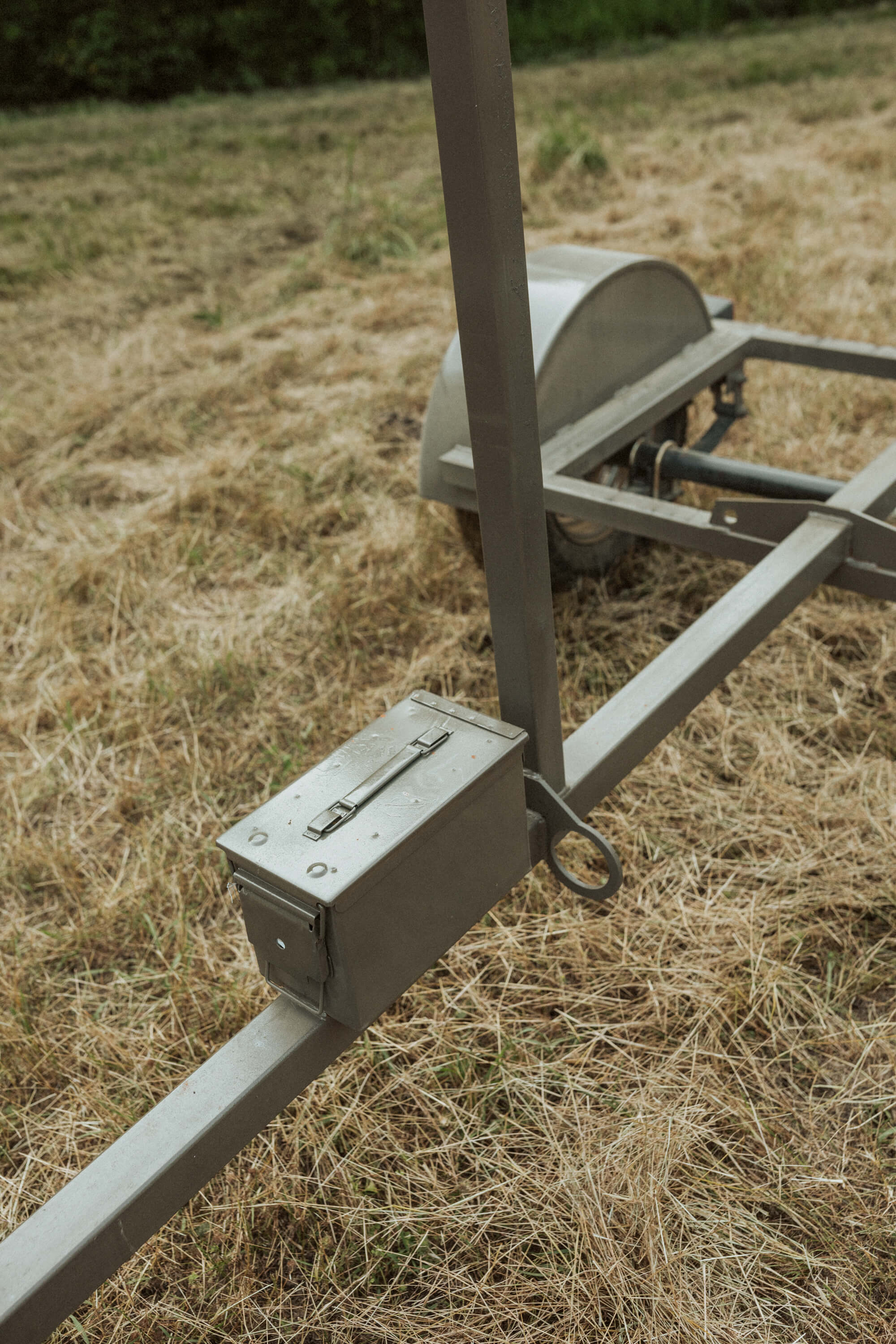

• Snap-lid steel tool box on the tongue stores pins and straps

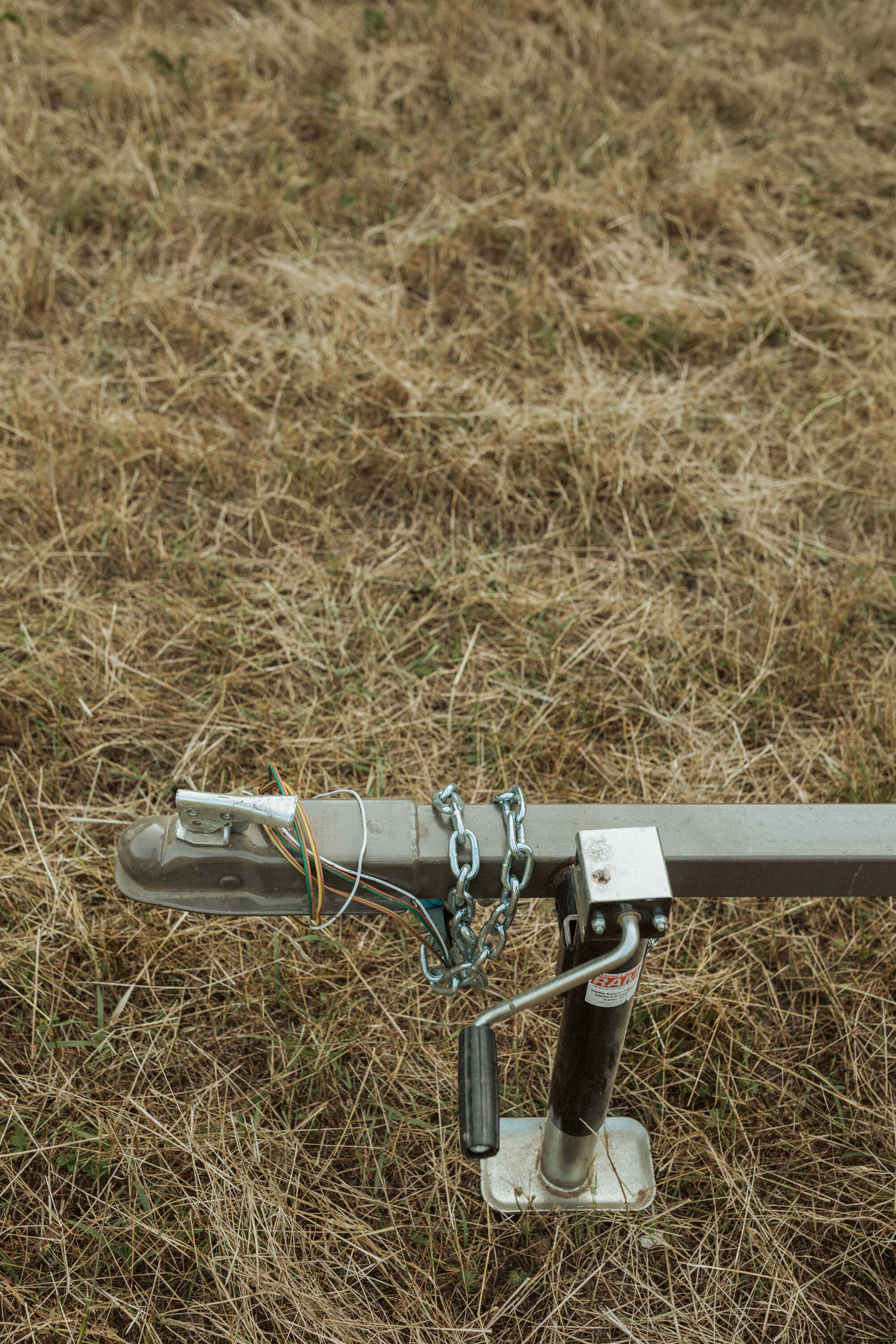

• Swivel tongue jack, 3,000 lb support and 2,000 lb lift capacity


• Lever coupler accepts a 2 in ball

• USA-sourced steel, USA manufacturing, one-year limited warranty

Key Specifications

• Overall size — 70 in W × 122 in L × 84 in H

• Panel uprights — 61 in H, 48.5 in W, 51 in between fenders

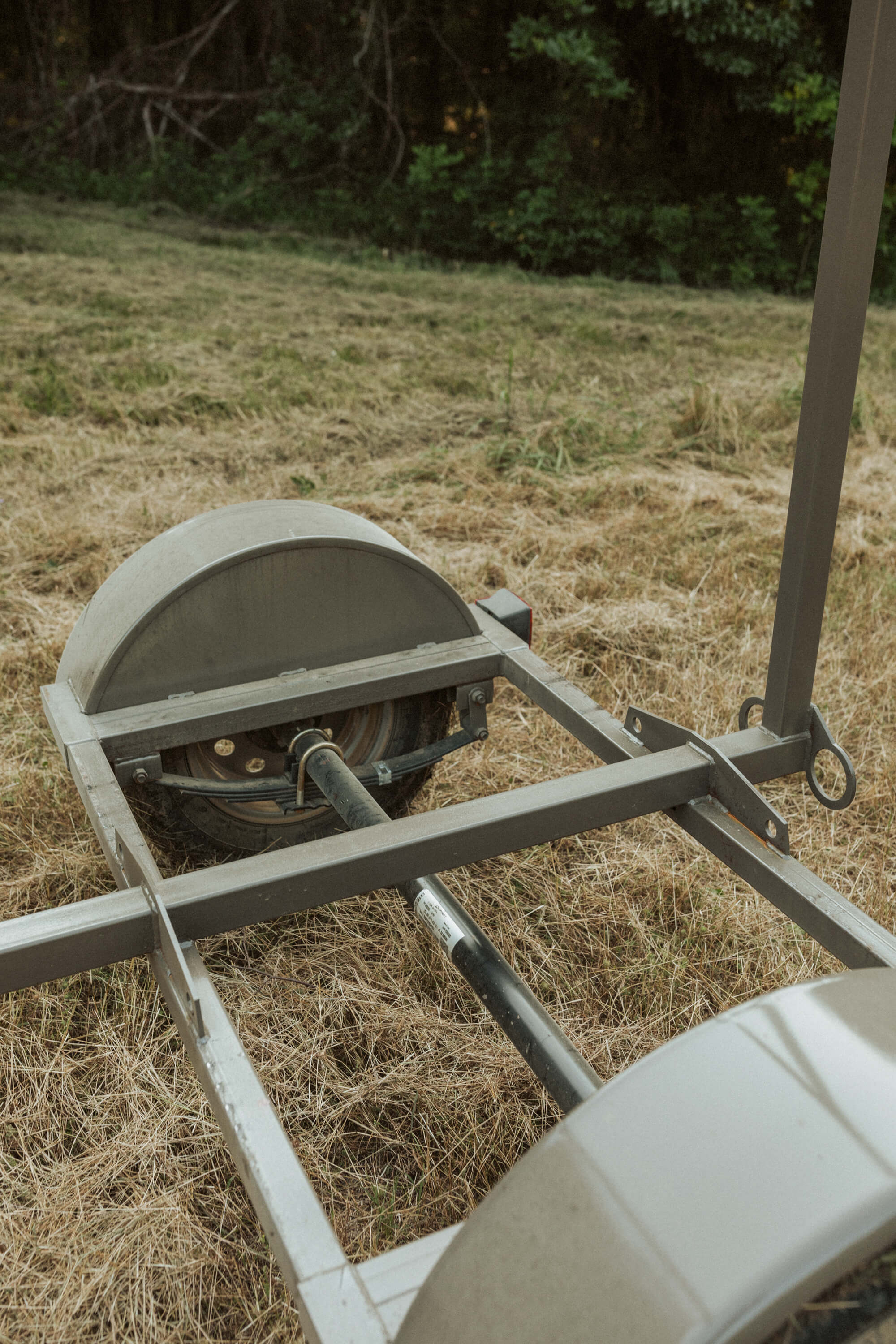

• GVWR — 1,990 lb | Axle — 3,500 lb

• Tires — ST205/75R15, 1,820 lb at 50 psi, 81 mph speed rating, 6-ply

• Frame runner — 2.5 in × 2.5 in × 3/16 in steel tubing
